The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high‑performance wireless networks.
Features
- Power Save Supported
- Mounting Wall/Ceiling (Kits Included)
Specifications
Dimensions: 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
Weight: 170 g (6.0 oz), 185 g (6.5 oz) with Mounting Kits
Networking Interface: (1) 10/100/1000 Ethernet Port
Ports: No
Buttons: Reset
Antennas: (2) Dual-Band Antennas, 3 dBi Each
Wi-Fi Standards: 802.11 a/b/g/n/ac
Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter
Maximum Power Consumption: 6.5W
Max TX Power: 20 dBm
BSSID: Up to Four per Radio
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications: CE, FCC, IC
Operating Temperature: -10 to 70° C (14 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
DUAL-RADIO PERFORMANCE, GIGABIT SPEEDS

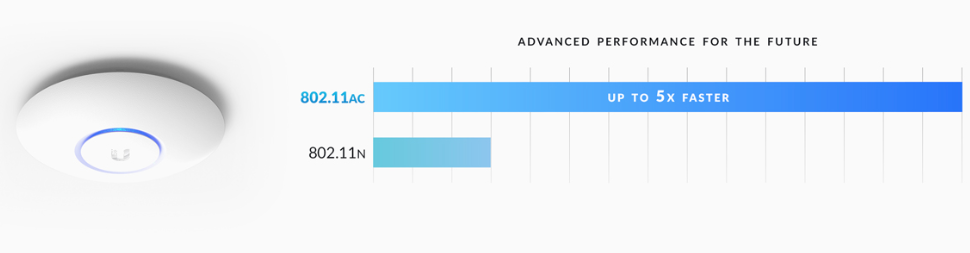

The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
SLEEK, ULTRA-COMPACT DESIGN
The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
DESIGNED FOR OPTIMAL RF PERFORMANCE
The newly redesigned UniFi Controller optimizes RF performance:
ADVANCED TRAFFIC MANAGEMENT
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 200+
SUPPORTED DATA RATES (MBPS)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
