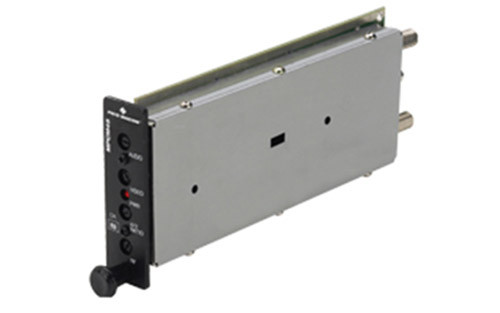

SAW filtered NTSC MONO audio/video mini modulator.
Features
- 135-Channel Range 54-860 MHz
(CATV 2-135) - >45dBmV min adjustable output
for optimum carrier-to-noise
performance - Compatible with most manufacturers mini-modulator chassis
- State-of-the-art digital phase locked-loop (PLL) design guarantees precise frequency locking for
solid drift-free operation - Microprocessor control enables quick digital push-button channel
selection for ease of installation, configuration, and improved system uptime - SAW (surface acoustic wave) filtered for superior adjacent channel performance enables drop-in channel expansion
- In-band carrier-to-noise ratio >65dB ensures superior picture quality
- Automatic selection of aeronautical offsets (12.5kHz, 25kHz) for trouble-free configuration
- Front panel access to controls enables easy setup
Specifications
DC Power Input: +12V ±5% at 200 mA typical, 230 mA maximum. +5 V ±5% at 320 mA typical, 380 mA maximum
Operating Temperature: 0°C to + 50 °C ambient.
Size: 1”W * 3.5”H * 7.5” D *
Weight: 10.7 oz.. (0.3 Kg)
Frequency Range: NTSC 54 to 860 MHz
Output Level: +45 dBmV (minimum – 15dB adjustment range.)
Output Impedance: 75 Ohms
A / V Ratio: Audio carrier level, adjustable from – 8 to –35 dB (±3dB). Referenced to video carrier level.
Frequency Stability: ±5KHZ
Intercarrier Frequency: 4.5MHz ±3.0KHZ
Spurious Outputs: 60 dBc typical, measured at –15 dB A/V ratio and with Modulator output level of + 45 dBmV
Video Input for 87.5%: 0.6Vp-p to 1.5 Vp-p. Manual gain adjust with front panel control.
Input Impedance: 75Ohms
Frequency Response: 20Hz to 4.2 MHz ±1dB
Input Level for 25KHz: 100 mVrms to 3 mVrms. Manualgain adjust with front panel.
Input Impedance: Greater than 10KOhms, unbalanced.
